2005 Hylas 49 lying UK - asking £349,000 VAT paid, beautiful and blue water ready!
Description and Broker's comments:
2005 HYLAS 49 FOR SALE:
This Hylas 49 is hull #47. Built in 2005 by Queen Long Marine in Taiwan, where they have been successfully building yachts for over three decades.Recognized as the quality leader in the region, all of their boats have reflected a keen commitment to providing exceptional yachts. Her current owners bought her in February 2014 in Belfast and sailed her down to the South coast of England.
Her sweet sheer and elongated more traditional lines are the unmistakable hallmark of legendary yacht designers, Sparkman and Stephens. Known for her crisp performance and elegant hand-finished teak interior, she is an absolute joy to handle, even short handed.
The integrity assured by her solid laminate hull and watertight bulkheads further speak to her mission as a reliable offshore performer or elegant coastal cruiser.
A feature-filled interior incorporates three double cabins, extraordinary in a 49-footer. The fully equipped galley spans one of the two passageways to the aft stateroom.
On deck, her deep and secure centre cockpit provides perfect visibility from the helm and seats long enough to accommodate a relaxing nap. The reverse transom with wide steps and an integrated boarding ladder make getting aboard or off a breeze, whether from the water or from your dinghy.
On deck, her deep and secure centre cockpit provides perfect visibility from the helm and seats long enough to accommodate a relaxing nap. The reverse transom with wide steps and an integrated boarding ladder make getting aboard or off a breeze, whether from the water or from your dinghy.
The best part of this yacht is the delightfully positive helm that transmits her smooth energy to your fingertips! A spirited thoroughbred responding to your every command as the sea turns to diamonds, carrying you safely to your far destination.
Details and information:
Make: Hylas
Model: 49 Centre Cockpit
Year: 2005
Price: £349,000 VAT paid
Location: South Coast, UK
Length:
Beam:
Draft:
Dry weight:
Power: Yanmar 75hp 4JH-TE-98 4 cylinder turbo diesel engine
Extremely rare to the market, especially so in Europe, this is a fantastic example of this Sparkman & Stephens design blue water centre cockpit cruising yacht. Delivered new to the UK through Hylas Yachts UK and highly specified for effortless blue water cruising adventures, she benefits from such desirable cruising features as:-
RCD Status: CE Certification Directive 94/25/CE (Category "A" Ocean)
Electric in-mast furling
Electric genoa furling
Staysail
Vectron Mail Sail with short vertically-battens (2017)
Parasailor Venting Kite
Extended electric winch package
75hp engine with 3-bladed Max-prop
Bowthruster
Generator
High battery capacity with solar and wind charging systems
12v Spectra Water-maker (2017)
Reverse-cycle air-conditioning
Washing machine
Eberspacher Airtronic D5 Heating (2015)
AB UL9 Aluminium rib (2014)
Hydrovane wind steering (2017)
RCD Status: CE Certification Directive 94/25/CE (Category "A" Ocean)
Electric in-mast furling
Electric genoa furling
Staysail
Vectron Mail Sail with short vertically-battens (2017)
Parasailor Venting Kite
Extended electric winch package
75hp engine with 3-bladed Max-prop
Bowthruster
Generator
High battery capacity with solar and wind charging systems
12v Spectra Water-maker (2017)
Reverse-cycle air-conditioning
Washing machine
Eberspacher Airtronic D5 Heating (2015)
AB UL9 Aluminium rib (2014)
Hydrovane wind steering (2017)
This beautiful yacht represents a unique opportunity to acquire a fully CE-complaint and barely-used blue water cruising yacht of the very highest build quality, in ‘ready-to-go’ order and very attractively priced for a quick and simple sale.
Hull, Deck & Superstructure Construction:
• Solid handlaid fibreglass layup with no core and using vinylester resins and isophthalic gelcoat
• Hull is laid up with two layers of epoxy barrier coats below the waterline for optimal protection
• Copper-coat antifouling
• Watertight collision bulkhead forward of forward cabin with independent overboard drainage
• Watertight stern sections across aft lazarettes and stern locker
• Divided anchor locker with separate locker for fenders and shore lines
• Large aft stern lazarettes port and starboard with dual Bailey latches for watertight seal
• Stern locker with dedicated Rule auto bilge pump plus manual override in cockpit
• Balsa-cored GRP deck and superstructure constructions
• Solid GRP fibreglass in all areas for deck fittings and high-stress areas
• Teak laid cockpit seating, cockpit sole and bathing platform
• Teak 2 ¼” raised bulkwark
• Teak rubbing strake with stainless steel capping
• White gelcoat finish with blue boot topping lines
Keel & Rudder:
• Solid lead keel with solid 35mm stainless steel keel bolts with transverse mounted 8mm backing plates.
• Keel is fully encapsulated solid lead
• Keel provides 45% ballast ratio
• Fully skegged rudder for optimal strength and protection
• Stainless steel rudder stock
• Bottom of rudder plane above the keel plane for grounding safety
MACHINERY
Engine & gearbox:

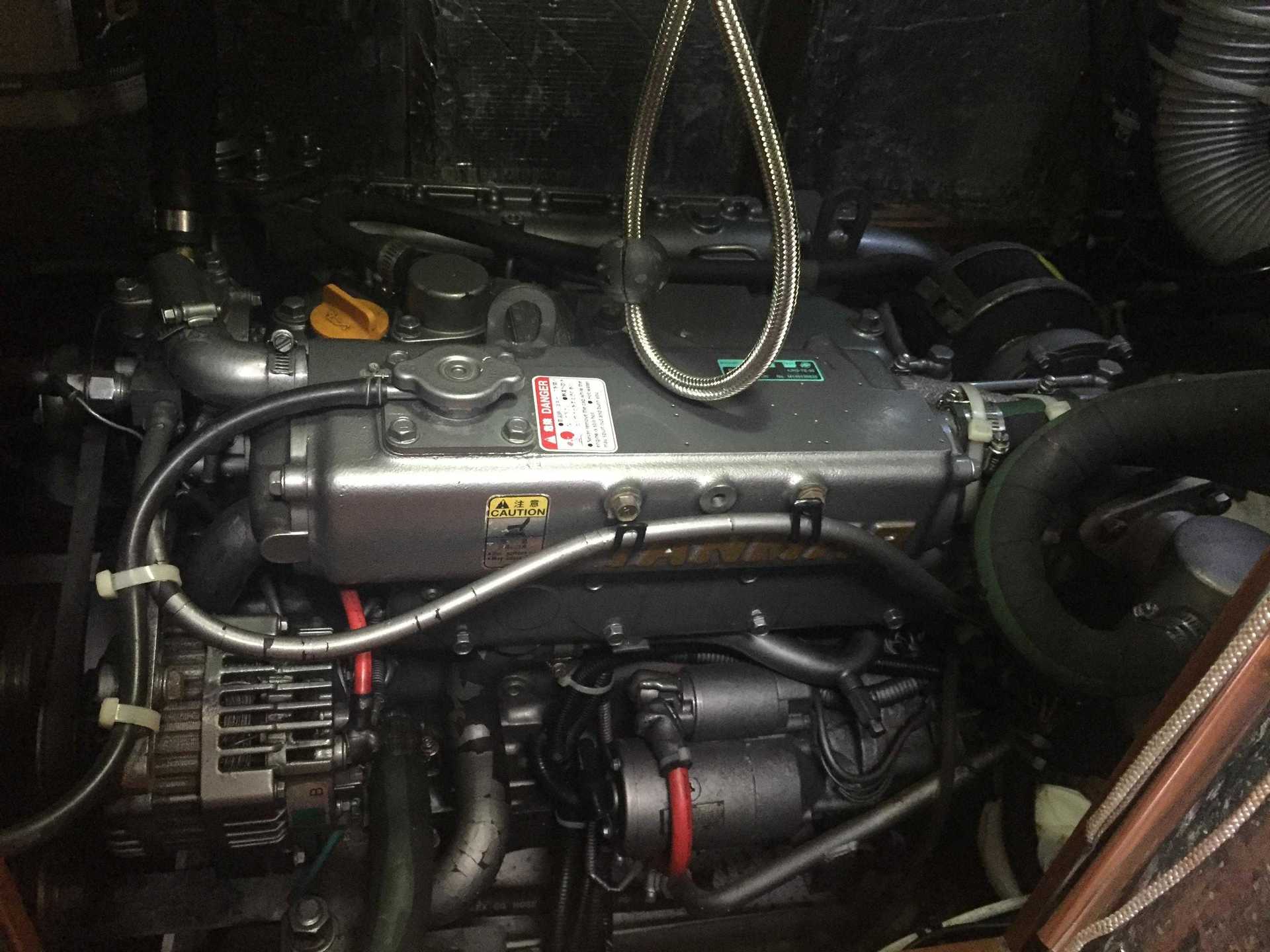

• Yanmar 75hp 4JH#-TE-98 4 cylinder turbocharged diesel engine with cockpit controls and alarm system
• Freshwater cooling system via raw water intake and heat exchanger
• Yanmar reduction gearbox
• Morse single lever control system to protect against high RPM gear shifting
• Dual Racal 75/500 fuel filtration system allowing independent filter and bypass system
Walborough in-line fuel system allowing engine bypass for filtration and eliminating the need for future engine bleeding in the case of a dry fuel tank
Oil change pump built in as standard
12v engine room ventilation
Engine room sound insulation, fire retardant
Anti-vibration engine mounts
HG250 Exhaust sensor
HG77 siren
• Engine hours –1205 as of 16 September 2017
Propulsion & Steering:
• Max-prop 3-bladed feathering propeller
• Rope cutter
• 38mm stainless steel propeller shaft
• Vetus flexible shaft coupling
• PSS non-drip shaft seal replaced 2016
• Side-Power 95kgf 12vDC bowthruster with joystick control at helm
• Lewmar pedestal with large diameter hide-covered stainless steel helm wheel with cable linkage to quadrant
Emergency steering gear
Hydrovane wind steering fitted 2017
ELECTRICAL SYSTEMS
Voltage systems:
• 12vDC domestic system with 220vAC via shorepower
Battery Banks:
• 1x 12v 120Ah engine start battery
• 2x 12v 210h service batteries joined to supply 420Ah @ 12v
• 1x 12v 210Ah windlass/bowthruster battery
• All batteries are isolated with a built in reverse isolation switch
• All batteries self contained and strapped in place
• Victron Energy BMV-501 battery monitoring system
Charger/Inverter:

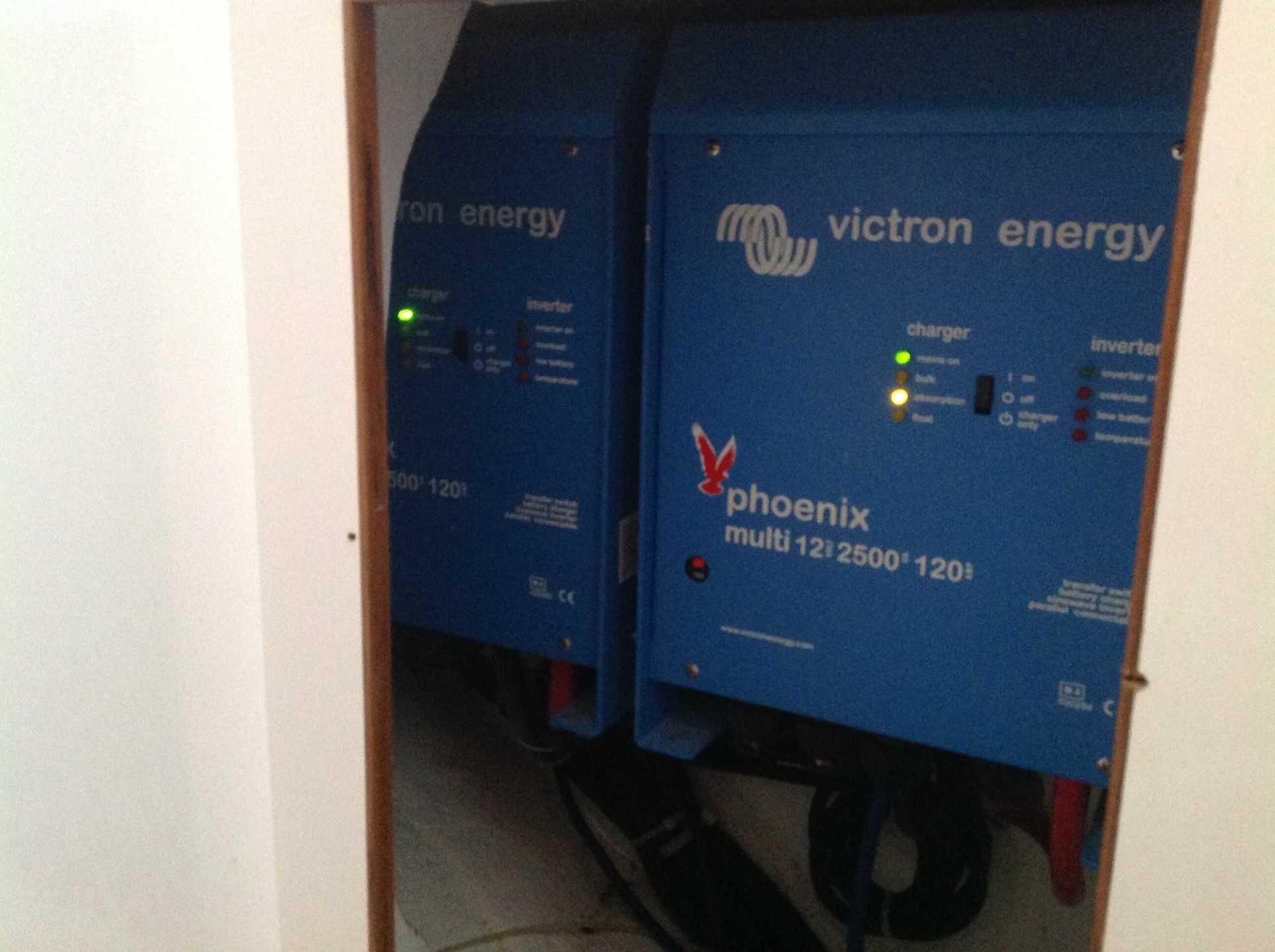

Victron Energy MultiPlus 12/2500/120 120Amp automatic battery charger with integral 2.5kw inverter
Second Victron Energy Multi 12/2500/120 120Amp automatic battery charger with integral 2.5kw inverter
Victron Pheonix Combi Multi control for charger and inverter
Two Panasonic 245 Watt solar panels on rear arch (2016)
Morningstar MPPT controller with tristar controller
Silent Wind generator fitted on rear arch
Alternators:
• Yanmar 80Amp engine-mounted alternator for charging start battery
• Balmar 165Amp secondary high-output alternator for charging service battery banks
• Bamar Max-Charge MC-612 charge regulator
Generator:
• Fischer Panda AGT DC PMS 4000 4kw 12v DC generator
• Generator hours: approx. 251 as of September 2017
Other Electrical:
• 32Amp 50Hz 230vAC shore power system with ring-main and 230vAC sockets throughout yacht.
• 220vAC ring main with sockets throughout
• 12vDC sockets at nav station, in all accommodation cabins and in aft lazarette
• Main AC/DC control panel with V, A & Hz meters
• Wiring "tinned" to reduce corrosion
• 3" copper grounding strip
PLUMBING & GAS SYSTEMS

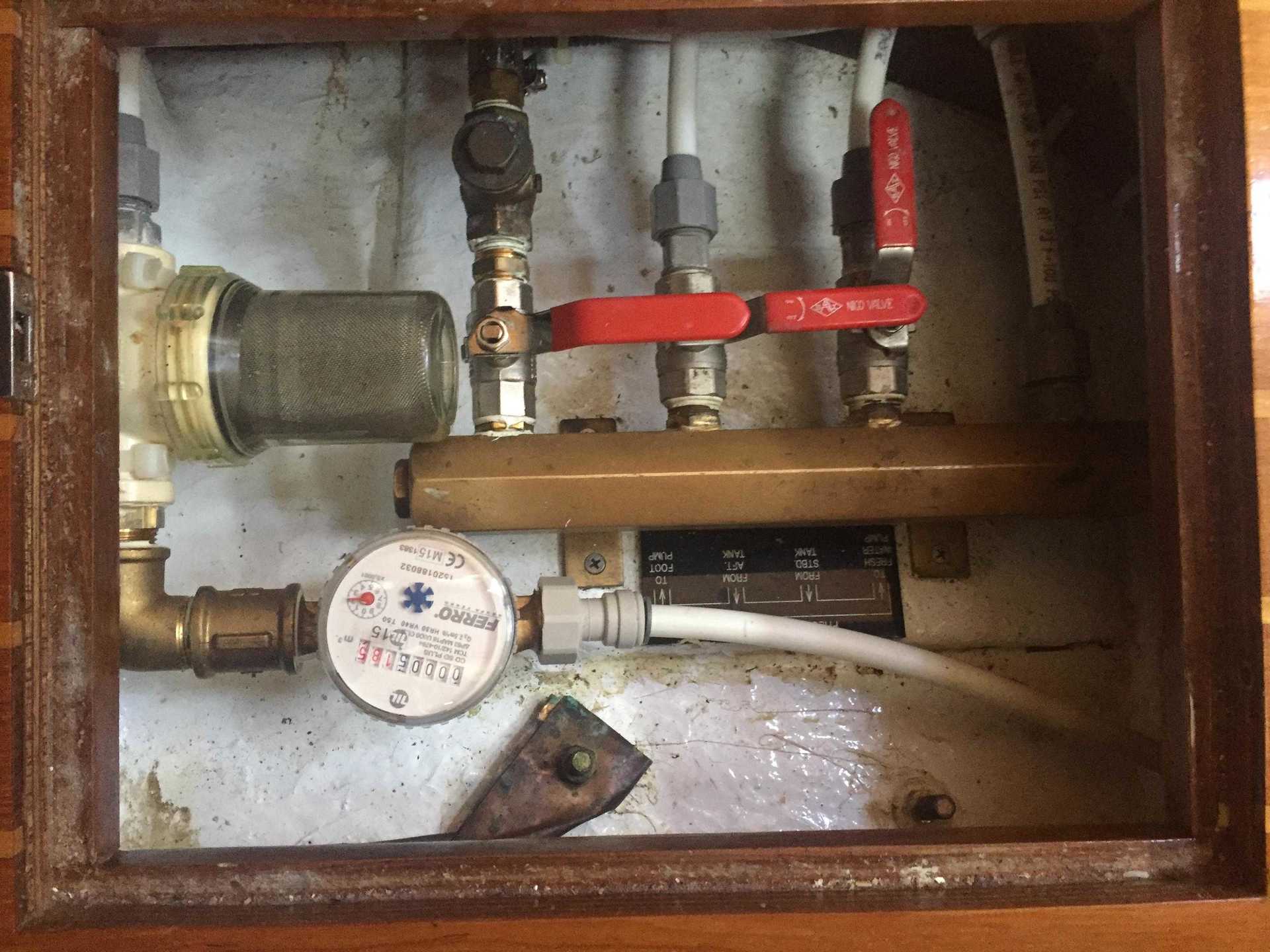

Fresh Water:

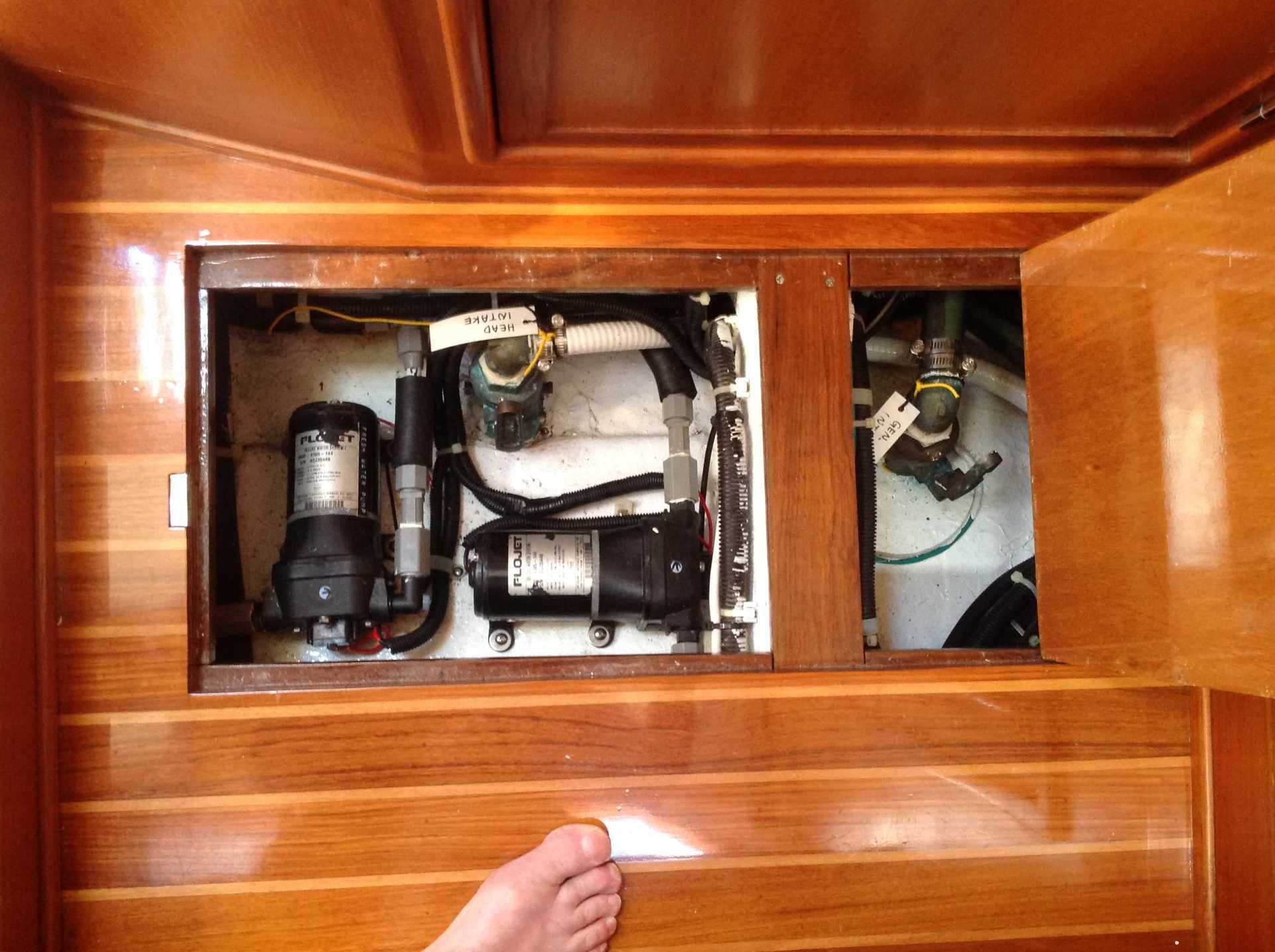

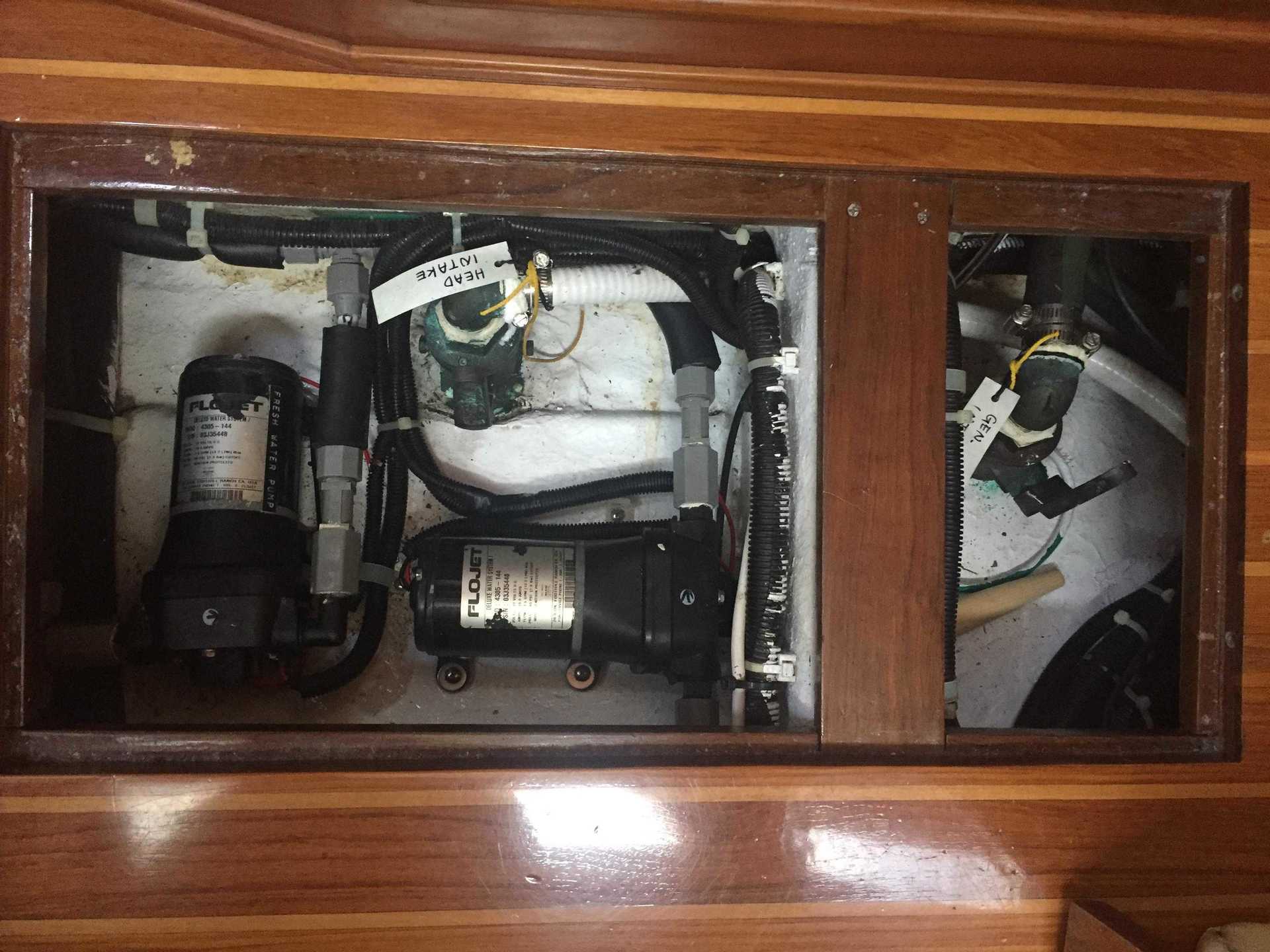

• Two independent 12vDC freshwater pump systems with visual indication lights at AC/DC panel
• Manual freshwater pump, foot activated for freshwater accessed in the galley
• Seagull filtered fresh water supply to galley
• Hot water supply via engine calorifier and 220vAC 1,500w immersion heater element in hot water tank powered by shorepower
Watermaker:
Spectra Watermaker 12vDC watermaker producing 25 litres per hour
The watermaker is kept in a decommissioned state.
Bilge Pumps:
• Whale Gusher 10 manual diaphragm bilge pump in cockpit
• Jabsco 12v electric submersible bilge pump with float switch in main bilge sump
• Jabsco 12v electric bilge pump with float in aft bilge
• Sureflo 12v electric bilge pump with float switch in lazarette
• Bilge alarm
Other Plumbing:
• All through hull fittings are solid bronze and all are bonded
Gas System:
• Dedicated lazarette locker with storage for 2 bottles of propane
• Gas system overhauled – winter 2014
• Solenoid shut off valve
• Fireboy S-2A gas detector
TANKAGE
Fuel:
• 830 litres of total fuel tankage in three independent stainless steel tanks located beneath the saloon floor and outboard to port.
• All tanks have easy access for inspection with dipstick, threaded inspection cap and larger inspection port

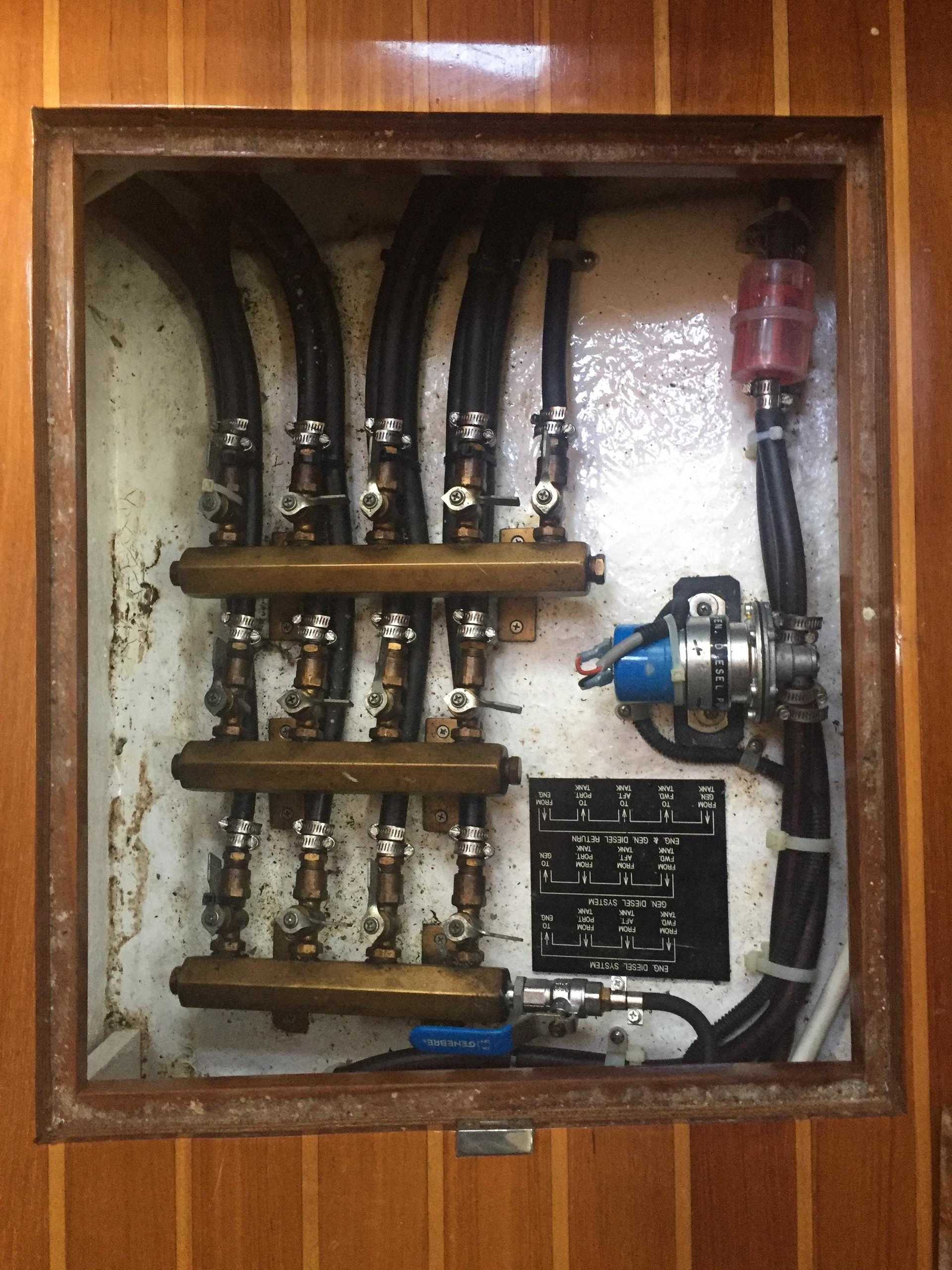

• Fuel manifold system with changeover values under galley sole
• Tank levels monitored by Tank Tender gauge
Fresh Water:

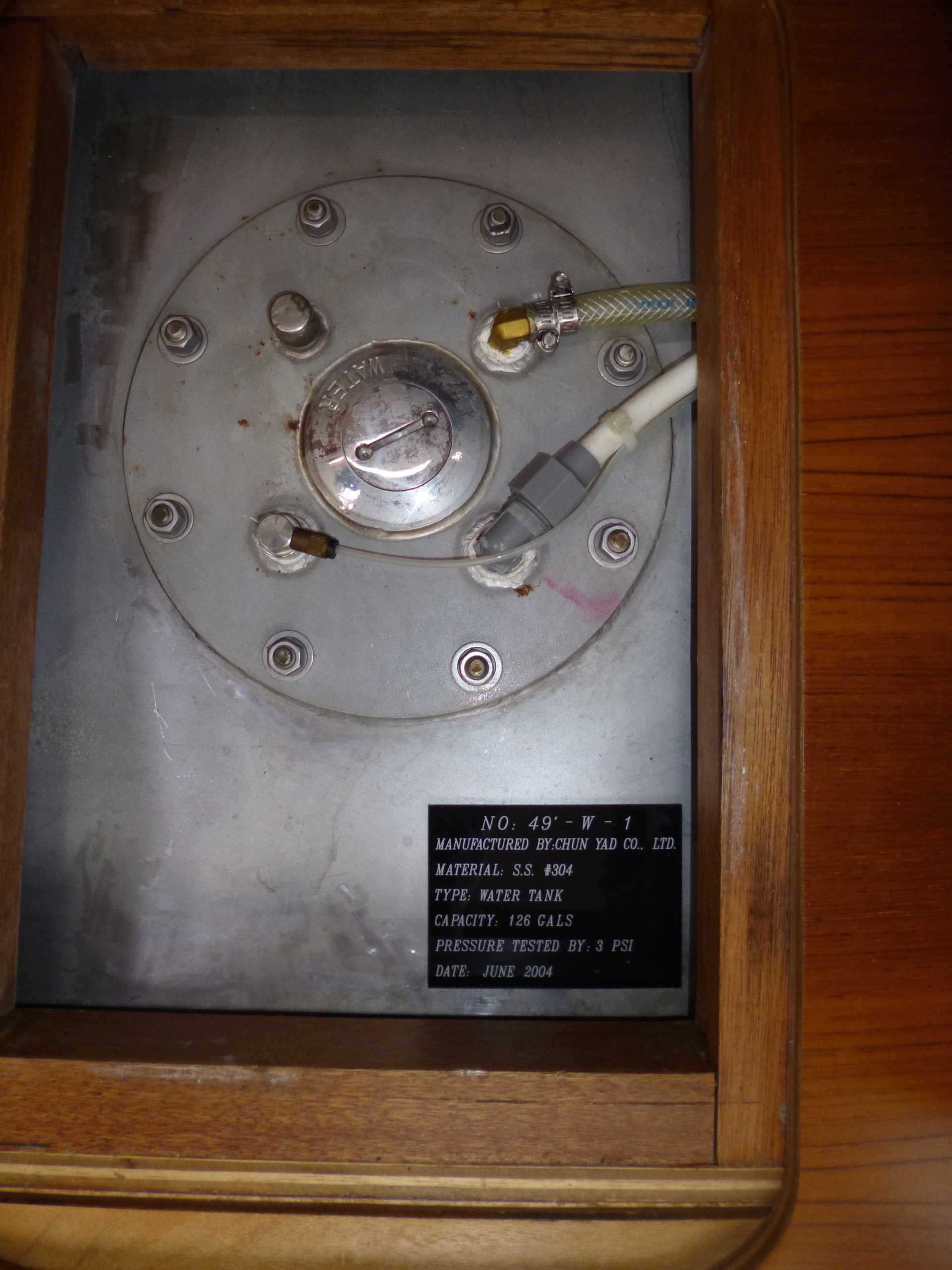

• 666 litres of total water tankage in two independent stainless steel tanks located outboard of saloon to starboard and below aft cabin
bunk
• All tanks have easy access for inspection with dipstick, threaded inspection cap and larger inspection port
• Tank levels monitored by Tank Tender gauge
Holding Tanks:
• 2x 100 litres independent holding tanks, one dedicated to each head with dual Y valve system for deck pump out, and direct pump out overboard with independent hand pump
• Discharge to sea or extraction from deck outlets
• Tank levels monitored by Tank Tender gauge
NAVIGATION & COMMUNICATION EQUIPMENT
Pedestal fittings
Simrad AP 16 Auto helm ( secondary)
Simrad IS 15 Wind
Simrad IS 15 Rudder
Raymarine Auto helm (primary) to the port side
Simrad RS87 VHF Handset
Companionway
Raymarine C125 Colour chart plotter 2016
Raymarine Wind
Raymarine Speed
Raymarine Depth
Simrad is 15 Wind

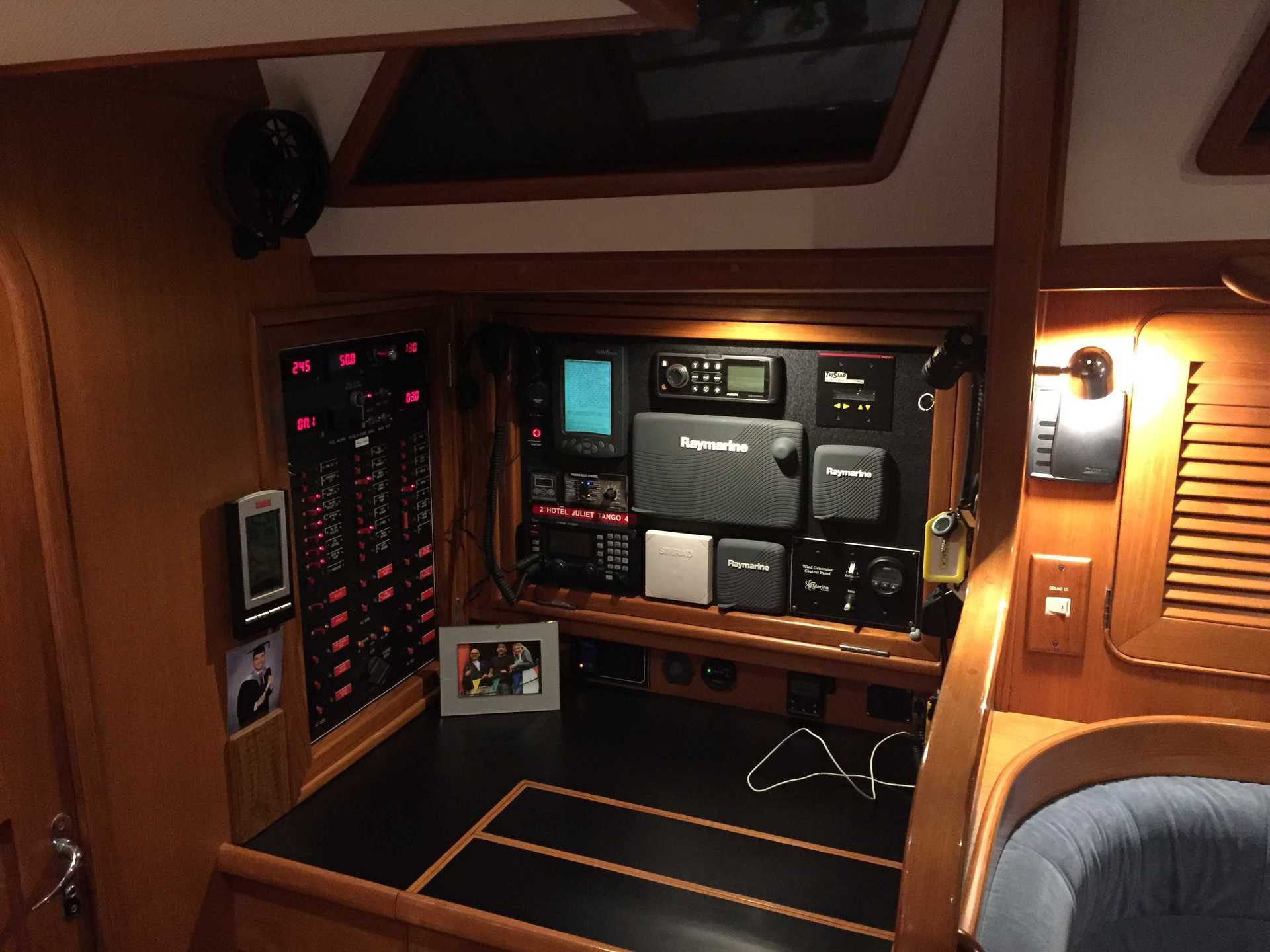

Nav Station
Raymarine i70
Raymarine Auto helm
Raymarine C90 chart plotter
Simrad AP 16 Auto helm ( secondary)
Simrad RS87 DSC VHF handset and speaker- inc Loud hailer and horn at mast
Icom I-CM 802 DSC HF SSB and speaker
Icom AD95 hand held VHF
Iridium Satellite phone
Navtex Nav 6
Fusion MS-CD600 Stereo
Icom AD95 Handheld VHF
Phoenix Muli control
12v Socket
Heating control
AIS Transponder
DOMESTIC EQUIPMENT

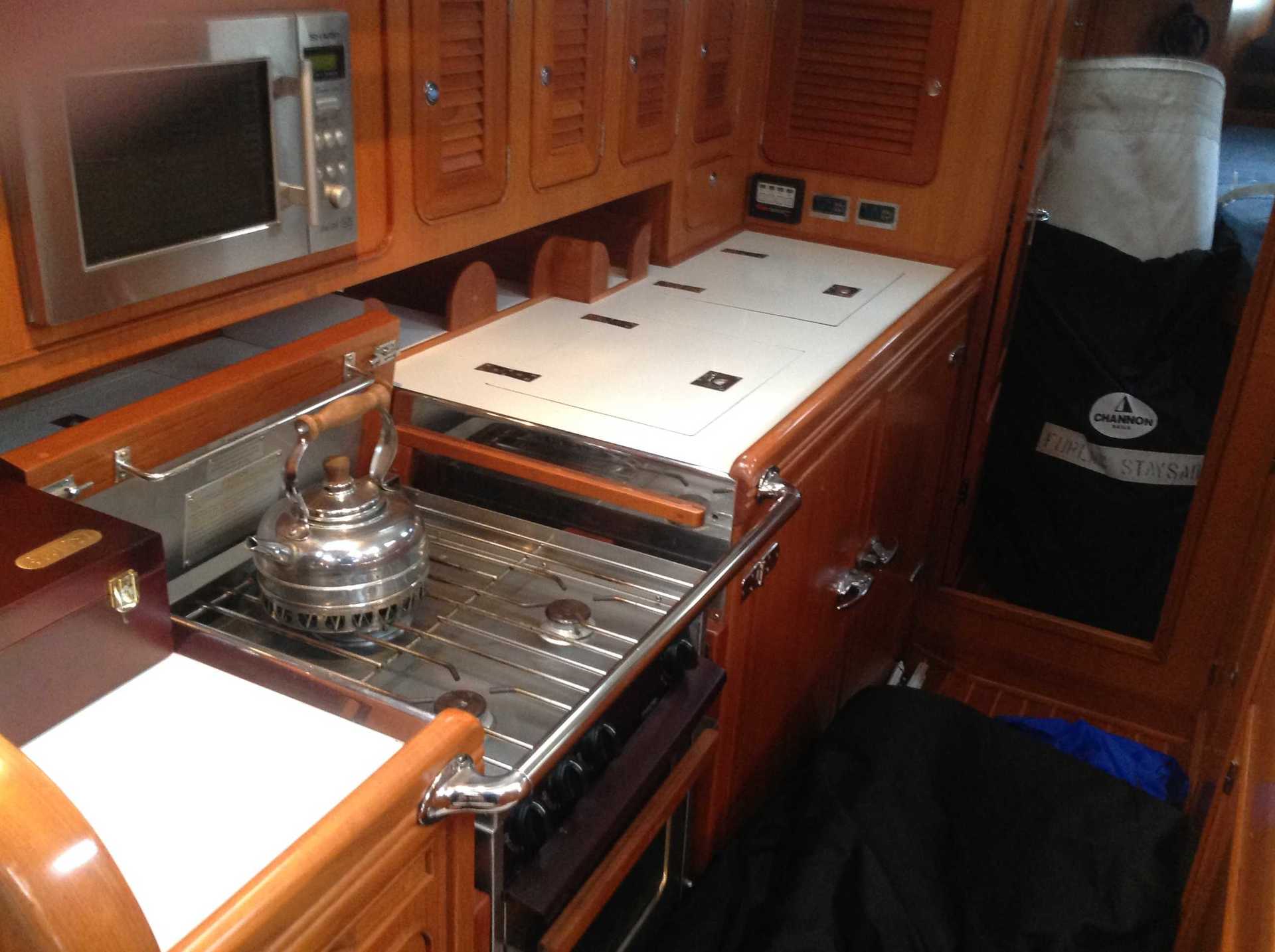

Galley:
• Force 10 stainless steel gimaballed three burner propane stove with oven and stainless steel back lining
• Panasonic microwave oven powered via shorepower, inverter or generator
• Twin top & front opening fridge/freezers with Frig-o-Boat thermostatic controls and temperature gauges. Water-cooled.
Heads:
• 2 Standard Jabsco heads with holding tanks
• Y-valves for discharge to sea or holding tanks
Heating & Ventilation:
Cruisair 220vAC reverse-cycle air-conditioning and heating with three units – forward, admidships and aft.
12v ventilation fans throughout
Eberspacher Airtronic D5 Warm air heater (2014)
Lighting:
All lighting is LED warm white
Enterainment:
• Fusion MS-CD600 Stereo/Radio with speakers in saloon, aft cabin, and cockpit
• Electrically retracting cabinet for LCD TV (no TV included)
ACCOMMODATION
Summary of Accommodation:
• Accommodation for up to 8 in two double cabins, a single bunk cabin and settee berths in saloon. 2 Heads.
Accommodation Finish:
• Customised teak interior
• Solid teak and holly soles laid on subflooring with epoxy urethane coating and seven coats of varnish
• Louvered teak doors and trim
• Finely finished cabinetry with louvered finish
• Cream Wahlee marble countertops throughout
• Solid teak handrails throughout the interior for easy movement offshore
• Abundant overhead hatches and ports for excellent ventilation
• Epoxy sealed endgrains and subflooring
• All cabin sole pieces are positive locking for offshore passage making
• All cabinets are finished throughout including complete interiors
• All overhead headliner is easily removed
• Oceanir skyscreens for all deckhead hatches with blackout blinds
• Blue Alcantara upholstery throughout with custom covers for berth mattresses
• Protective clear cover for saloon table
• 6” Custom mattresses for aft double cabin
• Lee-cloths
• Head-room – approx. 6’8”
Description of Accommodation from Forward:

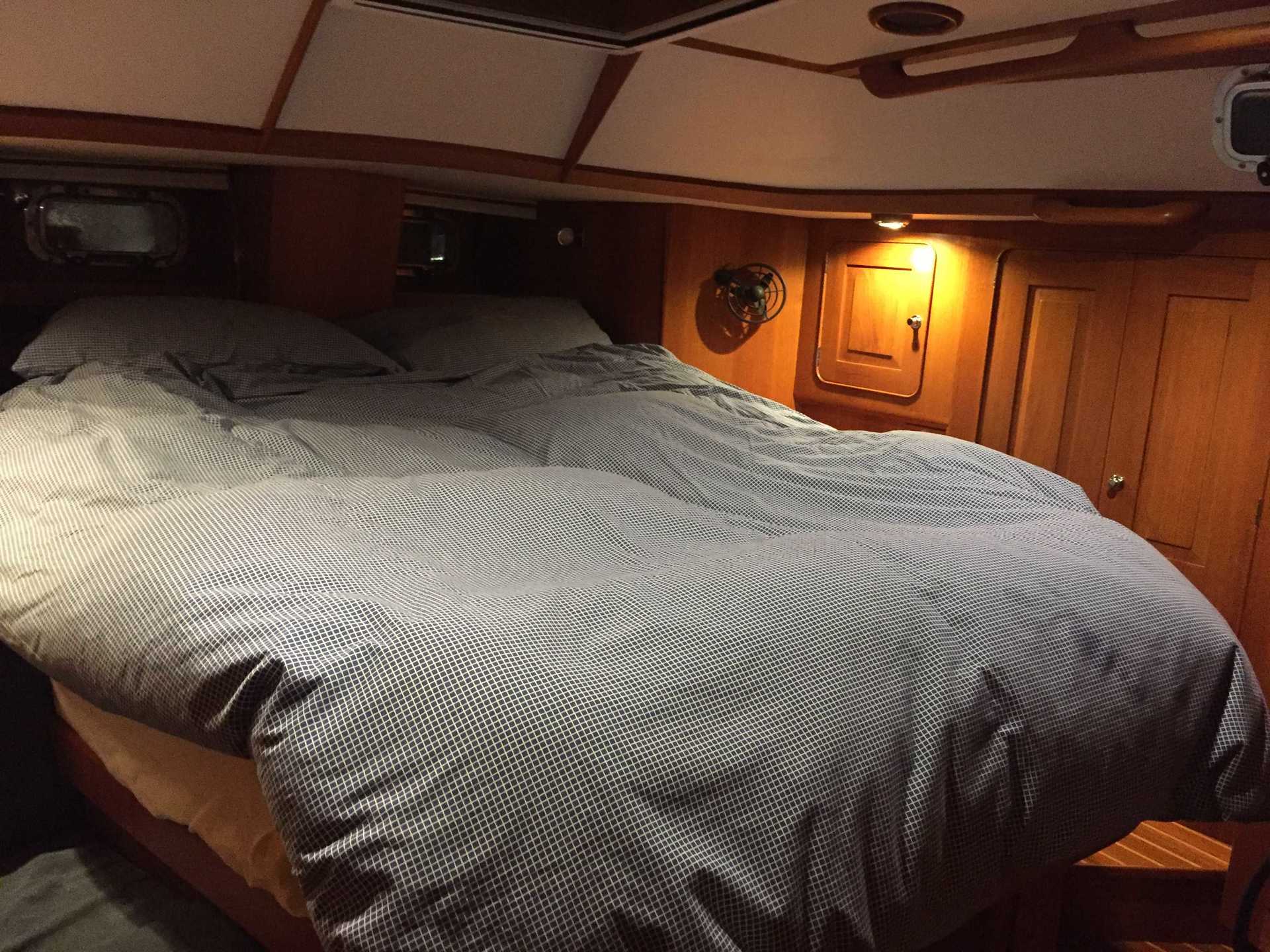

Forward Cabin
• Full width double berth 6′ 9" in length
• Cupboards beneath berth
• Hanging lockers to port and startboard
• Vanity seat
Forward Heads:
• Wahlee stone counters
• Three large storage lockers in head
• Heads with holding tank
• Shower with fold-down seat
• Shaver socket
• Teak grating
Mid cabin:
Portside cabin offers a private guestroom quarters , with an upper berth.
Zanussi washing machine FC1200W below berth
Two upper storage cupboards
Two lower storage cupboards
Main Saloon:
Bespoke saloon table incorporating fold-over leaf with stainless steel support allowing comfortable dining for 8.
Full length starboard settee extends a further 9" for wide sea berth
Removable central amrest infills for port and starboard settees
Extensive storage behind the dinette and settee
Double walk through passageway offering optimal ventilation and movement throughout the interior
Slide out seat with storage for added seating which slides in while underway
Electric retracting TV cabinet
Built in cocktail cabinet
Maximum headroom just under 7'

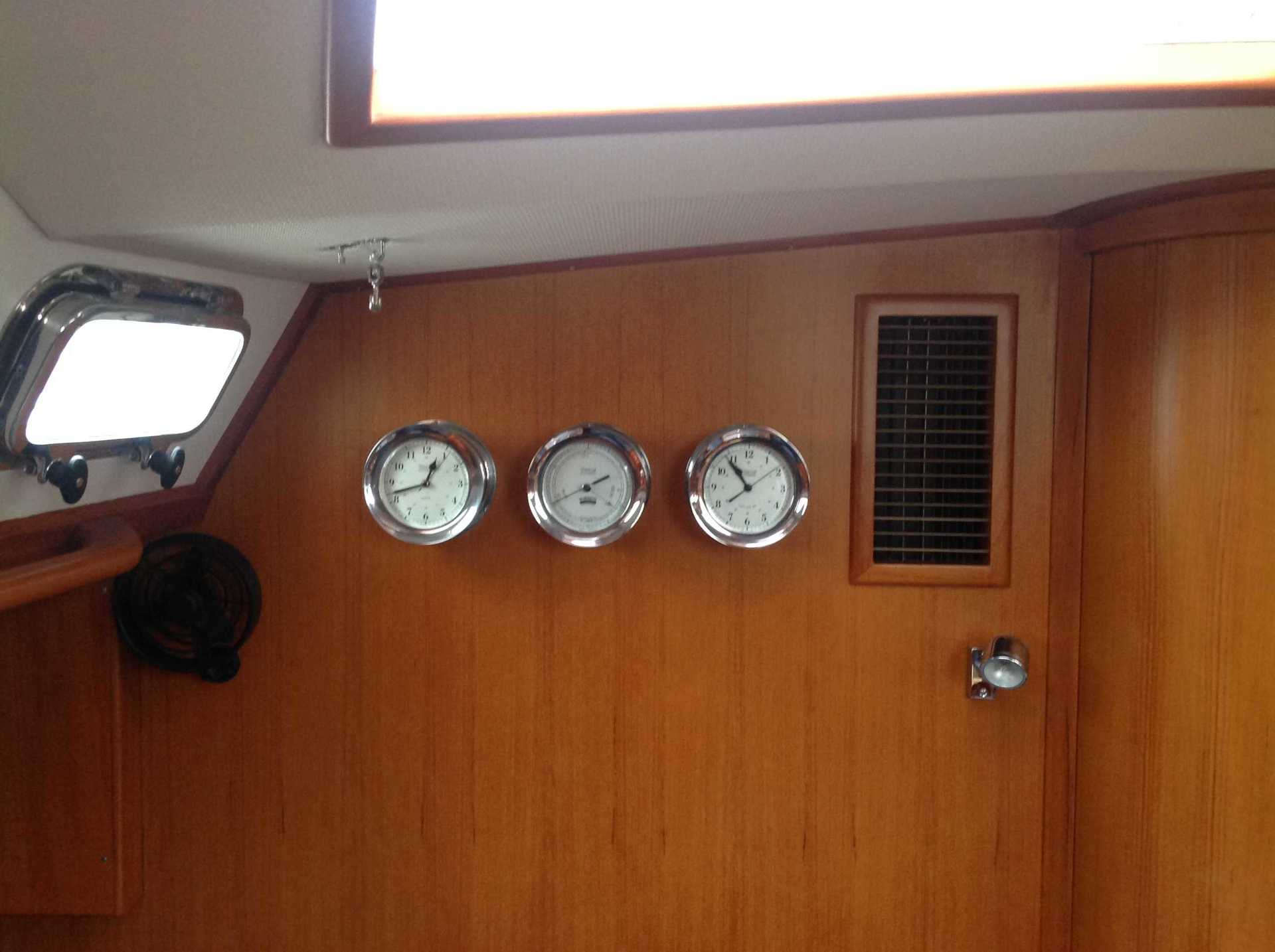

two clocks
one barometer
All lighting LED
Galley:
• Galley is over 7' in length to aft cabin offering total safety with room to brace on either tack while offshore
• Ample cabinets, storage lockers and drawers including pantry for cutlery, cookware and food storage
• Slide out trash container with positive locking door
• Freezer/Refrigeration boxes have electric pumps for keeping drained, and are both top and front loading
• Counter top recesses over stove allowing for stainless steel backsplash and increased counter space when in place
• Twin stainless steel sinks on inboard pantry
• Manual foot pump for fresh water
• Seagull pressurised filtered fresh water supply
Navigation Station:
• Side-facing nav station with full size table to hold folded Admiralty charts
• Pull-out upholstered seat
• Fast pin access to complete wiring harness and breakers
• All instruments and systems well labelled inside and out and traced numerically
Aft Cabin
Queen size aft berth set on centreline with split mattress
Settee with dressing table and mirror to starboard
Port and starboard side hanging lockers with optional removable shelves
Tall hanging lockers, bureau, drawers and bookcases
Cupboards or drawers available under owner's berth
LED television wall mounted
Aft Head
• Storage lockers in head
• Heads with holding tank
• Separate shower cubicle with fold-down seat
• Teak grating
• Shaver socket
• Wet locker access inboard
DECK EQUIPMENT
Rig:
• Selden in-mast electric furling mast with push button control at helm
• Aluminium white painted spars
• Keel-stepped mast with two sets of spreaders
• Masthead cutter rig with removable stay
• 1x19 stainless steel wire standing rigging –
• Discontinuous rigging design, including forward and aft lowers, for optimal strength.
• Selden electric inmast furling system
• Bamar MEJ1.02 12vDC electric genoa furler with push-button controls at helm
• Detachable inner forestay for staysail
• Selden gas-rod compression vang with 4:1 purchase
• Harken adjustable mainsheet track
• Schaefer genoa/staysail track with turning blocks
• RCB outhaul car and track
• Spreader Lights
• Twin fixed backstays insulated for SSB transceiver
• Selden aluminium spinnaker pole mast-mounted on adjustable track
• Lewmar and spinlock deck gear
Checkstays for staysail
Carbonfiber bow sprit
Winches:
• 2x Lewmar 64 2-speed electric self-tailing primary winches
• 1x Lewmar 48 2-speed electric self-tailing control winch starboard-side cockpit
• 1x Lewmar 48 2-speed manual self-tailing control winch port-side cockpit
• 1x Lewmar 48 2-speed electric self-tailing mainsheet winch at aft end of cockpit
• 2x Lewmar 44 2-speed manual self-tailing halyard winches on mast
Sails:
• Shore Sails short vertical-battened Vectron inmast furling mainsail (2017)
• Channon Sails vertical-battened Dacron furling genoa
• Channon Sails Dacron hank on staysail
Parasailor code 2 x 156 meter squared spinnaker
Channon spare mainsail with short Battens
Channon spare stay sail
General:
• 30" high stanchions with double lifelines
• Side boarding ladder with port and starboard mounting brackets
• Side-boarding ladder
• Manship 316 stainless overhead hatches and ports throughout
• Teak handrails on foredeck coachroof and aft coachroof
•Teak companionway handrails
• Solid teak varnished cockpit table with folding leafs, teak drinks holder
• Solid stainless cowl vents : 4 in total – one pair forward, one pair aft
• Stainless protective stern plate
• Fresh water hot and cold shower on stern steps
• Fold-down stainless steel stern ladder
Anchoring & Mooring:
• Solid stainless stem head fitting with split bow roller with stowage for two anchors
• Solid stainless steel striker plates for bow protection
• WC 2200 Maxwell Nilsson vertical windlass with chain feed stainless plate for chain protection plus bow controls and remote cockpit windlass control
• 60lbs Delta anchor with 80m chain
• kedge anchor with 20m chain and 40m warp
• Salt water deck wash pump
• Two pairs of stainless steel bow cleats : two pair of 12" midship cleats and one pair of 12" stern cleats
• Fore and aft mooring lines
• Fenders
Covers & Canvas:
• Beige canvas sprayhood with opening front panel and grab-rail
• Bimini with side, back and sprayhood connecting panels to create cockpit tent
• Beige canvas wheel/pedestal cover
• Cockpit cushions – blue with white piping
Tender & Outboard:
• AB UL9 RIB tender - 2014
• Mercury ME-F4M EU 4hp 4-stroke outboard engine 2014 – serviced 2017
SAFTEY EQUIPMENT:
6 man life raft (Needs servicing)
Jackstays
Para Anchors anchor
Para Anchors drogue
Xm Oscar
GME GPS EPIRB
Life lines
MOBiLert Crew save 7000
Carbon monoxide alarm
Other included items
• Mooring warp on roller 100 Mtrs
• All fenders and warps
• Selection of spare parts
• Full set of original Hylas manuals and instruction books
• Boom cover
• Window sun covers
• Hatch sun covers
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. Which are being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
• Hull is laid up with two layers of epoxy barrier coats below the waterline for optimal protection
• Copper-coat antifouling
• Watertight collision bulkhead forward of forward cabin with independent overboard drainage
• Watertight stern sections across aft lazarettes and stern locker
• Divided anchor locker with separate locker for fenders and shore lines
• Large aft stern lazarettes port and starboard with dual Bailey latches for watertight seal
• Stern locker with dedicated Rule auto bilge pump plus manual override in cockpit
• Balsa-cored GRP deck and superstructure constructions
• Solid GRP fibreglass in all areas for deck fittings and high-stress areas
• Teak laid cockpit seating, cockpit sole and bathing platform
• Teak 2 ¼” raised bulkwark
• Teak rubbing strake with stainless steel capping
• White gelcoat finish with blue boot topping lines
Keel & Rudder:
• Solid lead keel with solid 35mm stainless steel keel bolts with transverse mounted 8mm backing plates.
• Keel is fully encapsulated solid lead
• Keel provides 45% ballast ratio
• Fully skegged rudder for optimal strength and protection
• Stainless steel rudder stock
• Bottom of rudder plane above the keel plane for grounding safety
MACHINERY
Engine & gearbox:
• Yanmar 75hp 4JH#-TE-98 4 cylinder turbocharged diesel engine with cockpit controls and alarm system
• Freshwater cooling system via raw water intake and heat exchanger
• Yanmar reduction gearbox
• Morse single lever control system to protect against high RPM gear shifting
• Dual Racal 75/500 fuel filtration system allowing independent filter and bypass system
Walborough in-line fuel system allowing engine bypass for filtration and eliminating the need for future engine bleeding in the case of a dry fuel tank
Oil change pump built in as standard
12v engine room ventilation
Engine room sound insulation, fire retardant
Anti-vibration engine mounts
HG250 Exhaust sensor
HG77 siren
• Engine hours –1205 as of 16 September 2017
Propulsion & Steering:
• Max-prop 3-bladed feathering propeller
• Rope cutter
• 38mm stainless steel propeller shaft
• Vetus flexible shaft coupling
• PSS non-drip shaft seal replaced 2016
• Side-Power 95kgf 12vDC bowthruster with joystick control at helm
• Lewmar pedestal with large diameter hide-covered stainless steel helm wheel with cable linkage to quadrant
Emergency steering gear
Hydrovane wind steering fitted 2017
ELECTRICAL SYSTEMS
Voltage systems:
• 12vDC domestic system with 220vAC via shorepower
Battery Banks:
• 1x 12v 120Ah engine start battery
• 2x 12v 210h service batteries joined to supply 420Ah @ 12v
• 1x 12v 210Ah windlass/bowthruster battery
• All batteries are isolated with a built in reverse isolation switch
• All batteries self contained and strapped in place
• Victron Energy BMV-501 battery monitoring system
Charger/Inverter:
Victron Energy MultiPlus 12/2500/120 120Amp automatic battery charger with integral 2.5kw inverter
Second Victron Energy Multi 12/2500/120 120Amp automatic battery charger with integral 2.5kw inverter
Victron Pheonix Combi Multi control for charger and inverter
Two Panasonic 245 Watt solar panels on rear arch (2016)
Morningstar MPPT controller with tristar controller
Silent Wind generator fitted on rear arch
Alternators:
• Yanmar 80Amp engine-mounted alternator for charging start battery
• Balmar 165Amp secondary high-output alternator for charging service battery banks
• Bamar Max-Charge MC-612 charge regulator
Generator:
• Fischer Panda AGT DC PMS 4000 4kw 12v DC generator
• Generator hours: approx. 251 as of September 2017
Other Electrical:
• 32Amp 50Hz 230vAC shore power system with ring-main and 230vAC sockets throughout yacht.
• 220vAC ring main with sockets throughout
• 12vDC sockets at nav station, in all accommodation cabins and in aft lazarette
• Main AC/DC control panel with V, A & Hz meters
• Wiring "tinned" to reduce corrosion
• 3" copper grounding strip
PLUMBING & GAS SYSTEMS
Fresh Water:
• Two independent 12vDC freshwater pump systems with visual indication lights at AC/DC panel
• Manual freshwater pump, foot activated for freshwater accessed in the galley
• Seagull filtered fresh water supply to galley
• Hot water supply via engine calorifier and 220vAC 1,500w immersion heater element in hot water tank powered by shorepower
Watermaker:
Spectra Watermaker 12vDC watermaker producing 25 litres per hour
The watermaker is kept in a decommissioned state.
Bilge Pumps:
• Whale Gusher 10 manual diaphragm bilge pump in cockpit
• Jabsco 12v electric submersible bilge pump with float switch in main bilge sump
• Jabsco 12v electric bilge pump with float in aft bilge
• Sureflo 12v electric bilge pump with float switch in lazarette
• Bilge alarm
Other Plumbing:
• All through hull fittings are solid bronze and all are bonded
Gas System:
• Dedicated lazarette locker with storage for 2 bottles of propane
• Gas system overhauled – winter 2014
• Solenoid shut off valve
• Fireboy S-2A gas detector
TANKAGE
Fuel:
• 830 litres of total fuel tankage in three independent stainless steel tanks located beneath the saloon floor and outboard to port.
• All tanks have easy access for inspection with dipstick, threaded inspection cap and larger inspection port
• Fuel manifold system with changeover values under galley sole
• Tank levels monitored by Tank Tender gauge
Fresh Water:
• 666 litres of total water tankage in two independent stainless steel tanks located outboard of saloon to starboard and below aft cabin
bunk
• All tanks have easy access for inspection with dipstick, threaded inspection cap and larger inspection port
• Tank levels monitored by Tank Tender gauge
Holding Tanks:
• 2x 100 litres independent holding tanks, one dedicated to each head with dual Y valve system for deck pump out, and direct pump out overboard with independent hand pump
• Discharge to sea or extraction from deck outlets
• Tank levels monitored by Tank Tender gauge
NAVIGATION & COMMUNICATION EQUIPMENT
Pedestal fittings
Simrad AP 16 Auto helm ( secondary)
Simrad IS 15 Wind
Simrad IS 15 Rudder
Raymarine Auto helm (primary) to the port side
Simrad RS87 VHF Handset
Companionway
Raymarine C125 Colour chart plotter 2016
Raymarine Wind
Raymarine Speed
Raymarine Depth
Simrad is 15 Wind
Nav Station
Raymarine i70
Raymarine Auto helm
Raymarine C90 chart plotter
Simrad AP 16 Auto helm ( secondary)
Simrad RS87 DSC VHF handset and speaker- inc Loud hailer and horn at mast
Icom I-CM 802 DSC HF SSB and speaker
Icom AD95 hand held VHF
Iridium Satellite phone
Navtex Nav 6
Fusion MS-CD600 Stereo
Icom AD95 Handheld VHF
Phoenix Muli control
12v Socket
Heating control
AIS Transponder
DOMESTIC EQUIPMENT
Galley:
• Force 10 stainless steel gimaballed three burner propane stove with oven and stainless steel back lining
• Panasonic microwave oven powered via shorepower, inverter or generator
• Twin top & front opening fridge/freezers with Frig-o-Boat thermostatic controls and temperature gauges. Water-cooled.
Heads:
• 2 Standard Jabsco heads with holding tanks
• Y-valves for discharge to sea or holding tanks
Heating & Ventilation:
Cruisair 220vAC reverse-cycle air-conditioning and heating with three units – forward, admidships and aft.
12v ventilation fans throughout
Eberspacher Airtronic D5 Warm air heater (2014)
Lighting:
All lighting is LED warm white
Enterainment:
• Fusion MS-CD600 Stereo/Radio with speakers in saloon, aft cabin, and cockpit
• Electrically retracting cabinet for LCD TV (no TV included)
ACCOMMODATION
Summary of Accommodation:
• Accommodation for up to 8 in two double cabins, a single bunk cabin and settee berths in saloon. 2 Heads.
Accommodation Finish:
• Customised teak interior
• Solid teak and holly soles laid on subflooring with epoxy urethane coating and seven coats of varnish
• Louvered teak doors and trim
• Finely finished cabinetry with louvered finish
• Cream Wahlee marble countertops throughout
• Solid teak handrails throughout the interior for easy movement offshore
• Abundant overhead hatches and ports for excellent ventilation
• Epoxy sealed endgrains and subflooring
• All cabin sole pieces are positive locking for offshore passage making
• All cabinets are finished throughout including complete interiors
• All overhead headliner is easily removed
• Oceanir skyscreens for all deckhead hatches with blackout blinds
• Blue Alcantara upholstery throughout with custom covers for berth mattresses
• Protective clear cover for saloon table
• 6” Custom mattresses for aft double cabin
• Lee-cloths
• Head-room – approx. 6’8”
Description of Accommodation from Forward:
Forward Cabin
• Full width double berth 6′ 9" in length
• Cupboards beneath berth
• Hanging lockers to port and startboard
• Vanity seat
Forward Heads:
• Wahlee stone counters
• Three large storage lockers in head
• Heads with holding tank
• Shower with fold-down seat
• Shaver socket
• Teak grating
Mid cabin:
Portside cabin offers a private guestroom quarters , with an upper berth.
Zanussi washing machine FC1200W below berth
Two upper storage cupboards
Two lower storage cupboards
Main Saloon:
Bespoke saloon table incorporating fold-over leaf with stainless steel support allowing comfortable dining for 8.
Full length starboard settee extends a further 9" for wide sea berth
Removable central amrest infills for port and starboard settees
Extensive storage behind the dinette and settee
Double walk through passageway offering optimal ventilation and movement throughout the interior
Slide out seat with storage for added seating which slides in while underway
Electric retracting TV cabinet
Built in cocktail cabinet
Maximum headroom just under 7'
two clocks
one barometer
All lighting LED
Galley:
• Galley is over 7' in length to aft cabin offering total safety with room to brace on either tack while offshore
• Ample cabinets, storage lockers and drawers including pantry for cutlery, cookware and food storage
• Slide out trash container with positive locking door
• Freezer/Refrigeration boxes have electric pumps for keeping drained, and are both top and front loading
• Counter top recesses over stove allowing for stainless steel backsplash and increased counter space when in place
• Twin stainless steel sinks on inboard pantry
• Manual foot pump for fresh water
• Seagull pressurised filtered fresh water supply
Navigation Station:
• Side-facing nav station with full size table to hold folded Admiralty charts
• Pull-out upholstered seat
• Fast pin access to complete wiring harness and breakers
• All instruments and systems well labelled inside and out and traced numerically
Aft Cabin
Queen size aft berth set on centreline with split mattress
Settee with dressing table and mirror to starboard
Port and starboard side hanging lockers with optional removable shelves
Tall hanging lockers, bureau, drawers and bookcases
Cupboards or drawers available under owner's berth
LED television wall mounted
Aft Head
• Storage lockers in head
• Heads with holding tank
• Separate shower cubicle with fold-down seat
• Teak grating
• Shaver socket
• Wet locker access inboard
DECK EQUIPMENT
Rig:
• Selden in-mast electric furling mast with push button control at helm
• Aluminium white painted spars
• Keel-stepped mast with two sets of spreaders
• Masthead cutter rig with removable stay
• 1x19 stainless steel wire standing rigging –
• Discontinuous rigging design, including forward and aft lowers, for optimal strength.
• Selden electric inmast furling system
• Bamar MEJ1.02 12vDC electric genoa furler with push-button controls at helm
• Detachable inner forestay for staysail
• Selden gas-rod compression vang with 4:1 purchase
• Harken adjustable mainsheet track
• Schaefer genoa/staysail track with turning blocks
• RCB outhaul car and track
• Spreader Lights
• Twin fixed backstays insulated for SSB transceiver
• Selden aluminium spinnaker pole mast-mounted on adjustable track
• Lewmar and spinlock deck gear
Checkstays for staysail
Carbonfiber bow sprit
Winches:
• 2x Lewmar 64 2-speed electric self-tailing primary winches
• 1x Lewmar 48 2-speed electric self-tailing control winch starboard-side cockpit
• 1x Lewmar 48 2-speed manual self-tailing control winch port-side cockpit
• 1x Lewmar 48 2-speed electric self-tailing mainsheet winch at aft end of cockpit
• 2x Lewmar 44 2-speed manual self-tailing halyard winches on mast
Sails:
• Shore Sails short vertical-battened Vectron inmast furling mainsail (2017)
• Channon Sails vertical-battened Dacron furling genoa
• Channon Sails Dacron hank on staysail
Parasailor code 2 x 156 meter squared spinnaker
Channon spare mainsail with short Battens
Channon spare stay sail
General:
• 30" high stanchions with double lifelines
• Side boarding ladder with port and starboard mounting brackets
• Side-boarding ladder
• Manship 316 stainless overhead hatches and ports throughout
• Teak handrails on foredeck coachroof and aft coachroof
•Teak companionway handrails
• Solid teak varnished cockpit table with folding leafs, teak drinks holder
• Solid stainless cowl vents : 4 in total – one pair forward, one pair aft
• Stainless protective stern plate
• Fresh water hot and cold shower on stern steps
• Fold-down stainless steel stern ladder
Anchoring & Mooring:
• Solid stainless stem head fitting with split bow roller with stowage for two anchors
• Solid stainless steel striker plates for bow protection
• WC 2200 Maxwell Nilsson vertical windlass with chain feed stainless plate for chain protection plus bow controls and remote cockpit windlass control
• 60lbs Delta anchor with 80m chain
• kedge anchor with 20m chain and 40m warp
• Salt water deck wash pump
• Two pairs of stainless steel bow cleats : two pair of 12" midship cleats and one pair of 12" stern cleats
• Fore and aft mooring lines
• Fenders
Covers & Canvas:
• Beige canvas sprayhood with opening front panel and grab-rail
• Bimini with side, back and sprayhood connecting panels to create cockpit tent
• Beige canvas wheel/pedestal cover
• Cockpit cushions – blue with white piping
Tender & Outboard:
• AB UL9 RIB tender - 2014
• Mercury ME-F4M EU 4hp 4-stroke outboard engine 2014 – serviced 2017
SAFTEY EQUIPMENT:
6 man life raft (Needs servicing)
Jackstays
Para Anchors anchor
Para Anchors drogue
Xm Oscar
GME GPS EPIRB
Life lines
MOBiLert Crew save 7000
Carbon monoxide alarm
Other included items
• Mooring warp on roller 100 Mtrs
• All fenders and warps
• Selection of spare parts
• Full set of original Hylas manuals and instruction books
• Boom cover
• Window sun covers
• Hatch sun covers
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. Which are being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
Disclaimer:
Whilst every care has been taken in the preparation of these particulars, their accuracy is not guaranteed. They are intended as guides only and as such do not constitute a part of any contract. A prospective purchaser is advised to check all particulars and where appropriate and at his own expense to employ a qualified marine surveyor to carry out a survey and/or to have an engine trial conducted, which if conducted by us shall not imply any liability on our part. All dimensions, performance figures, range notes and standard specifications given are approximate and should be treated as a guide only. Pictures may be from a brochure or of a similar vessel. Engine hours shown are correct at the time of preparation of the particulars, but will vary with usage. Availability of specific vessels may be subject to change, we therefore recommend you call for confirmation. N.B. Ribs, dinghies, water toys, safety equipment and out-board engines are not included in the sale unless otherwise stated. All negotiations and agreements are subject to exchange of final written contracts.
